Výroba elektrické energie z FVE podle lokality

Produkce elektrické energie je závislá na intenzitě slunečního záření a je tedy hlavně závislá na lokalitě umístění fotovoltaické elektrárny. Mezi další faktory ovlivňující výrobu elektrické energie je sklon a orientace fotovoltaických panelů.

Roční výroba elektrické energie

Roční výroba elektrické energie se udává v kWh nebo v MWh. Pro porovnání lokalit, bez ohledu na velikost fotovoltaické elektrárny, se roční výroba podělí velikostí FVE v kWp. Výsledná hodnota udává, kolik vyrobí FVE na jednotku kWh. Roli hraje nejen lokalita, sklon, ale i orientace panelů.

Níže uvedená tabulka porovnává výrobu FVE podle lokalit při zachování ideálních podmínek FVE:

sklon fotovoltaických panelů: 35°
orientace: jih

Praha | 998 kWh/kWp
Brno | 1049 kWh/kWp
Olomouc | 1018 kWh/kWp
Ostrava | 1001 kWh/kWp
Liberec | 996 kWh/kWp
Ústí nad Labem | 980 kWh/kWp
Karlovy Vary | 987 kWh/kWp
Plzeň | 1004 kWh/kWp
České Budějovice | 1029 kWh/kWp
Jihlava | 1026 kWh/kWp
Pardubice | 1008 kWh/kWp
Hradec Králové | 1013 kWh/kWp
Zlín | 1044 kWh/kWp

Výroba elektrické energie z FVE je přímo úměrná její velikosti. Dvakrát větší elektrárna tak vyrobí dvakrát větší množství elektrické energie.

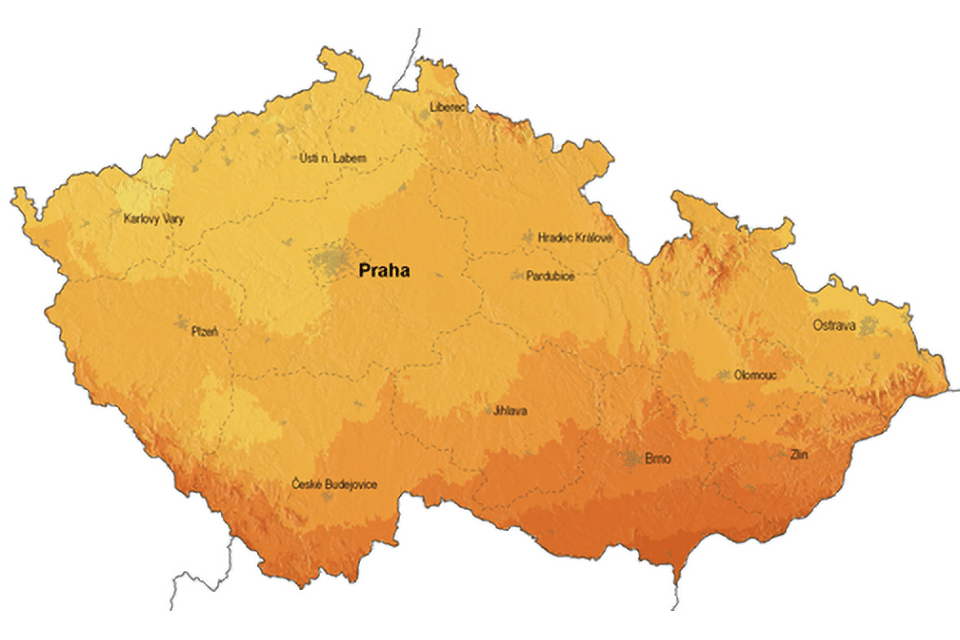

[image_hotspot_parent image=“https://www.silektro.cz/wp-content/uploads/2020/06/Mapa-ČR-sluneční-záření-3×2@05.png“ disabled_on=“off|off|off“ _builder_version=“4.9.2″ box_shadow_style=“none“ locked=“off“ global_colors_info=“{}“ theme_builder_area=“post_content“][image_hotspot_child pointer_icon=“||divi||400″ pointer_vertical_position=“37.4%“ pointer_horizontal_position=“33.4%“ title=“998″ desc=“kWh/kWp za 1 rok“ icon_color=“#29303b“ use_circle=“off“ icon_font_size=“18px“ tooltip_bg=“#29303b“ _builder_version=“4.16″ title_level=“h3″ title_font=“|600|||||||“ title_text_align=“center“ title_font_size=“24px“ content_text_align=“center“ content_font_size=“14px“ box_shadow_style=“preset2″ global_colors_info=“{}“ theme_builder_area=“post_content“][/image_hotspot_child][image_hotspot_child pointer_icon=“||divi||400″ pointer_vertical_position=“54.3%“ pointer_horizontal_position=“73.1%“ title=“1018″ desc=“kWh/kWp za 1 rok“ icon_color=“#29303b“ use_circle=“off“ icon_font_size=“18px“ tooltip_bg=“#29303b“ _builder_version=“4.16″ title_level=“h3″ title_font=“|600|||||||“ title_text_align=“center“ title_font_size=“24px“ content_text_align=“center“ content_font_size=“14px“ box_shadow_style=“preset2″ global_colors_info=“{}“ theme_builder_area=“post_content“][/image_hotspot_child][image_hotspot_child pointer_icon=“||divi||400″ pointer_vertical_position=“67.2%“ pointer_horizontal_position=“65.6%“ title=“1049″ desc=“kWh/kWp za 1 rok“ icon_color=“#29303b“ use_circle=“off“ icon_font_size=“18px“ tooltip_bg=“#29303b“ _builder_version=“4.16″ title_level=“h3″ title_font=“|600|||||||“ title_text_align=“center“ title_font_size=“24px“ content_text_align=“center“ content_font_size=“14px“ box_shadow_style=“preset2″ global_colors_info=“{}“ theme_builder_area=“post_content“][/image_hotspot_child][image_hotspot_child pointer_icon=“||divi||400″ pointer_vertical_position=“47.2%“ pointer_horizontal_position=“88.9%“ title=“1001″ desc=“kWh/kWp za 1 rok“ icon_color=“#29303b“ use_circle=“off“ icon_font_size=“18px“ tooltip_bg=“#29303b“ _builder_version=“4.16″ title_level=“h3″ title_font=“|600|||||||“ title_text_align=“center“ title_font_size=“24px“ content_text_align=“center“ content_font_size=“14px“ box_shadow_style=“preset2″ global_colors_info=“{}“ theme_builder_area=“post_content“][/image_hotspot_child][image_hotspot_child pointer_icon=“||divi||400″ pointer_vertical_position=“14.2%“ pointer_horizontal_position=“41.6%“ title=“996″ desc=“kWh/kWp za 1 rok“ icon_color=“#29303b“ use_circle=“off“ icon_font_size=“18px“ tooltip_bg=“#29303b“ _builder_version=“4.16″ title_level=“h3″ title_font=“|600|||||||“ title_text_align=“center“ title_font_size=“24px“ content_text_align=“center“ content_font_size=“14px“ box_shadow_style=“preset2″ global_colors_info=“{}“ theme_builder_area=“post_content“][/image_hotspot_child][image_hotspot_child pointer_icon=“||divi||400″ pointer_vertical_position=“18.2%“ pointer_horizontal_position=“27.8%“ title=“980″ desc=“kWh/kWp za 1 rok“ icon_color=“#29303b“ use_circle=“off“ icon_font_size=“18px“ tooltip_bg=“#29303b“ _builder_version=“4.16″ title_level=“h3″ title_font=“|600|||||||“ title_text_align=“center“ title_font_size=“24px“ content_text_align=“center“ content_font_size=“14px“ box_shadow_style=“preset2″ global_colors_info=“{}“ theme_builder_area=“post_content“][/image_hotspot_child][image_hotspot_child pointer_icon=“||divi||400″ pointer_vertical_position=“30.5%“ pointer_horizontal_position=“9.2%“ title=“987″ desc=“kWh/kWp za 1 rok“ icon_color=“#29303b“ use_circle=“off“ icon_font_size=“18px“ tooltip_bg=“#29303b“ _builder_version=“4.16″ title_level=“h3″ title_font=“|600|||||||“ title_text_align=“center“ title_font_size=“24px“ content_text_align=“center“ content_font_size=“14px“ box_shadow_style=“preset2″ global_colors_info=“{}“ theme_builder_area=“post_content“][/image_hotspot_child][image_hotspot_child pointer_icon=“||divi||400″ pointer_vertical_position=“46.8%“ pointer_horizontal_position=“16.7%“ title=“1004″ desc=“kWh/kWp za 1 rok“ icon_color=“#29303b“ use_circle=“off“ icon_font_size=“18px“ tooltip_bg=“#29303b“ _builder_version=“4.16″ title_level=“h3″ title_font=“|600|||||||“ title_text_align=“center“ title_font_size=“24px“ content_text_align=“center“ content_font_size=“14px“ box_shadow_style=“preset2″ global_colors_info=“{}“ theme_builder_area=“post_content“][/image_hotspot_child][image_hotspot_child pointer_icon=“||divi||400″ pointer_vertical_position=“74%“ pointer_horizontal_position=“32.7%“ title=“1029″ desc=“kWh/kWp za 1 rok“ icon_color=“#29303b“ use_circle=“off“ icon_font_size=“18px“ tooltip_bg=“#29303b“ _builder_version=“4.16″ title_level=“h3″ title_font=“|600|||||||“ title_text_align=“center“ title_font_size=“24px“ content_text_align=“center“ content_font_size=“14px“ box_shadow_style=“preset2″ global_colors_info=“{}“ theme_builder_area=“post_content“][/image_hotspot_child][image_hotspot_child pointer_icon=“||divi||400″ pointer_vertical_position=“60%“ pointer_horizontal_position=“48.3%“ title=“1026″ desc=“kWh/kWp za 1 rok“ icon_color=“#29303b“ use_circle=“off“ icon_font_size=“18px“ tooltip_bg=“#29303b“ _builder_version=“4.16″ title_level=“h3″ title_font=“|600|||||||“ title_text_align=“center“ title_font_size=“24px“ content_text_align=“center“ content_font_size=“14px“ box_shadow_style=“preset2″ global_colors_info=“{}“ theme_builder_area=“post_content“][/image_hotspot_child][image_hotspot_child pointer_icon=“||divi||400″ pointer_vertical_position=“39.1%“ pointer_horizontal_position=“51.7%“ title=“1008″ desc=“kWh/kWp za 1 rok“ icon_color=“#29303b“ use_circle=“off“ icon_font_size=“18px“ tooltip_bg=“#29303b“ _builder_version=“4.16″ title_level=“h3″ title_font=“|600|||||||“ title_text_align=“center“ title_font_size=“24px“ content_text_align=“center“ content_font_size=“14px“ box_shadow_style=“preset2″ global_colors_info=“{}“ theme_builder_area=“post_content“][/image_hotspot_child][image_hotspot_child pointer_icon=“||divi||400″ pointer_vertical_position=“33.4%“ pointer_horizontal_position=“52.1%“ title=“1013″ desc=“kWh/kWp za 1 rok“ icon_color=“#29303b“ use_circle=“off“ icon_font_size=“18px“ tooltip_bg=“#29303b“ _builder_version=“4.16″ title_level=“h3″ title_font=“|600|||||||“ title_text_align=“center“ title_font_size=“24px“ content_text_align=“center“ content_font_size=“14px“ box_shadow_style=“preset2″ global_colors_info=“{}“ theme_builder_area=“post_content“][/image_hotspot_child][image_hotspot_child pointer_icon=“||divi||400″ pointer_vertical_position=“66.9%“ pointer_horizontal_position=“78.9%“ title=“1044″ desc=“kWh/kWp za 1 rok“ icon_color=“#29303b“ use_circle=“off“ icon_font_size=“18px“ tooltip_bg=“#29303b“ _builder_version=“4.16″ title_level=“h3″ title_font=“|600|||||||“ title_text_align=“center“ title_font_size=“24px“ content_text_align=“center“ content_font_size=“14px“ box_shadow_style=“preset2″ global_colors_info=“{}“ theme_builder_area=“post_content“][/image_hotspot_child][/image_hotspot_parent]
